Refraktor. Apertura: 152 mm. Ohnisková vzdálenost: 900 mm

Refraktor
Optická konstrukce
152
Apertura – průměr světelného objektivu (refraktory a katadioptry) nebo zrcadla (reflektory), který dalekohled používá ke sběru světla
900
Ohnisková vzdálenost – vzdálenost od primárního objektivu nebo zrcadla k bodu, na který je světlo zaostřeno
Dostupnost

ID výrobku
71403
Značka
Záruka
2
EAN
4007922035161
Velikost balení (DxŠxV)
0x0x0
Popis

Complete H-alpha solar telescope with 152mm aperture and <0.7 Angstrom bandwidth. With Feather Touch focuser, advanced air-pressure tuning system, and B3400 blocking filter. The large LS152THa is sure to provide a professional balance of resolution and performance!

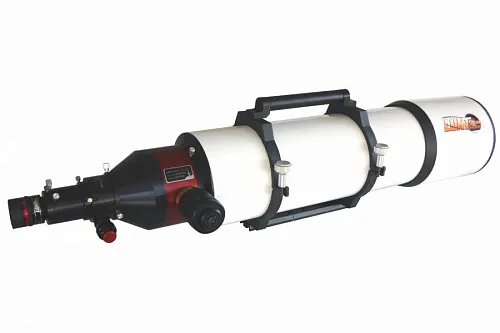

The LS152THa/B3400 is a complete telescope for observing the sun in H-alpha, a precision aligned refractor with 152mm aperture (no central obstruction) and 900mm focal length. This large solar telescope is perfect for the ambitious solar observer!

If it's a perfect image you're after, the LS152THa provides a very large and high resolution image size. The 100% unobstructed system will perform to the highest level at both low and high magnifications. Utilizing both advanced hi-contrast coatings, and the advanced Doppler True Pressure Tuning system, the user will be able to experience crisp, sharp, high magnification visual images, as well as utilize this system for high-end digital imaging processes.

An internal Etalon with advanced air-pressure tuning system “Pressure Tuner” provides <0.7 Angstrom bandwidth. This “Pressure Tuner” system allows a more accurate Etalon adjustment than other systems. The “Pressure Tuner” system adapted the Etalon to varying altitudes and atmospheric pressures for always optimal performance. The Etalon is installed safely inside the telescope-tube.

Fine adjustment is achieved by a 2" Starlight Instruments Feather Touch focuser with 1.5" travel and 10:1 reduction.

Blocking-filter is the B3400. The B3400 is good for solar imaging. We recommend an additional 90° star diagonal for visual observing.

The straight extension tube in which the blocking filter is installed, is equipped as standard with a connection for 2" eyepieces and with an adapter for 1.25" eyepieces.

Also this large LS152THa telescope is upgradeable with the additional available DSII double-stack system. The optional DSII system is an internal double stack module with "Pressure Tuner", that provides a bandwidth <0.5 Angstrom. More details on the solar surface will become visible by reducing the bandwidth.

Features:

  • Bandwidth: internal Etalon with <0.7 Angstrom
  • Tuning: air-pressure tuning system
  • Blocking-filter: B3400 with 2" and 1.25" connection
  • Focuser: Starlight Instruments Feather Touch focuser with 10:1 reduction
  • Two tube rings with carrying handle
  • Dove tail bar with GP level for astronomical mounts

The kit includes:

  • Solar telescope
  • “Pressure Tuner” system
  • B3400 blocking-filter in straight extension tube
  • 2" Feather Touch focuser
  • Tube rings with dove tail bar
  • LUNT zoom eyepiece
  • Transport case
  • Instruction manual
Specifikace
ID výrobku 71403
Značka LUNT Solární systémy
Záruka 2
EAN 4007922035161
Velikost balení (DxŠxV) 0x0x0
Přepravní hmotnost 28
Optická konstrukce refraktor
Apertura, mm 152
Ohnisková vzdálenost, mm 900
Okulárový výtah 2", dvourychlostní (10:1), 1,5" posun tažné trubky (Starlight Instruments Feather Touch®)
Blokující filtr B3400
Šířka pásma, Angstrom <0.7
Režim montáže optické trubice rybinová deska, upevňovací kroužky
Typ uživatele zkušení uživatelé
Pozorovaný objekt Slunce
Pouzdro/kufřík/taška v sadě kufřík
